QuadWave

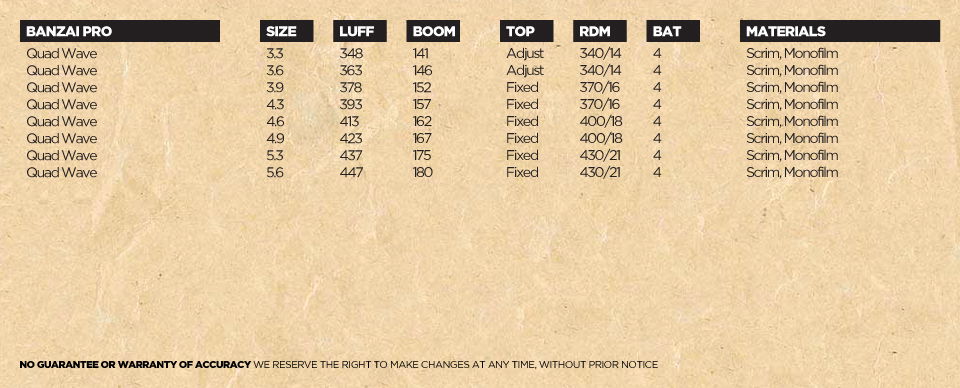

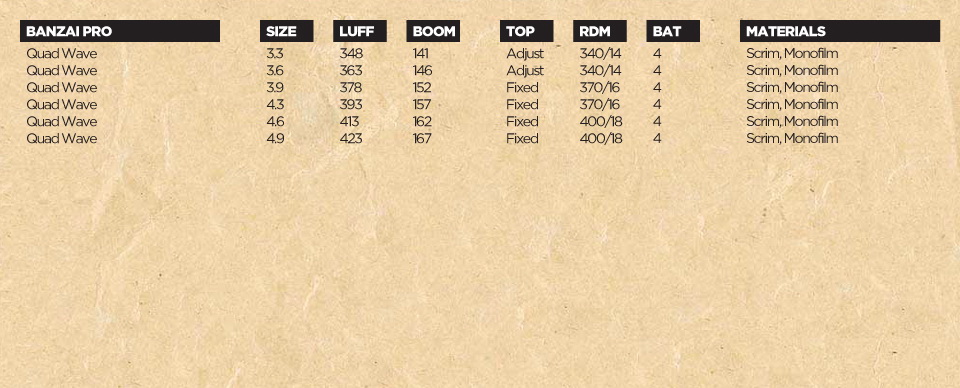

Size Available
3.3 | 3.6 | 3.9 | 4.3 | 4.6 | 4.9 | 5.3 | 5.6

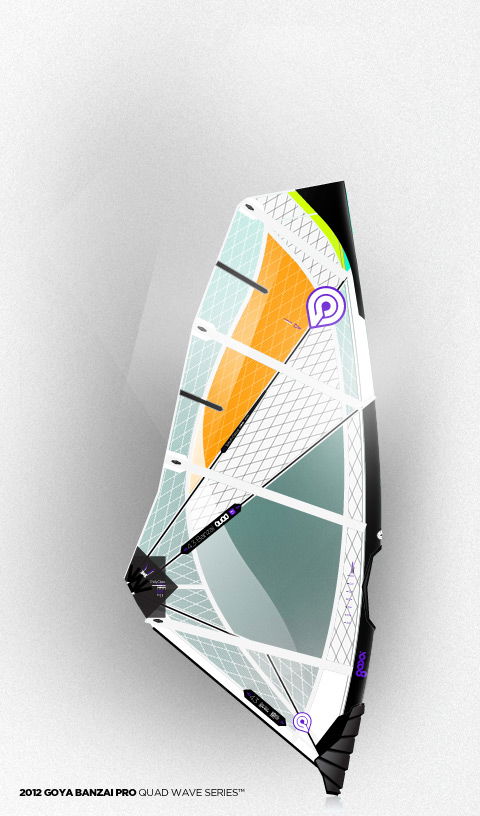

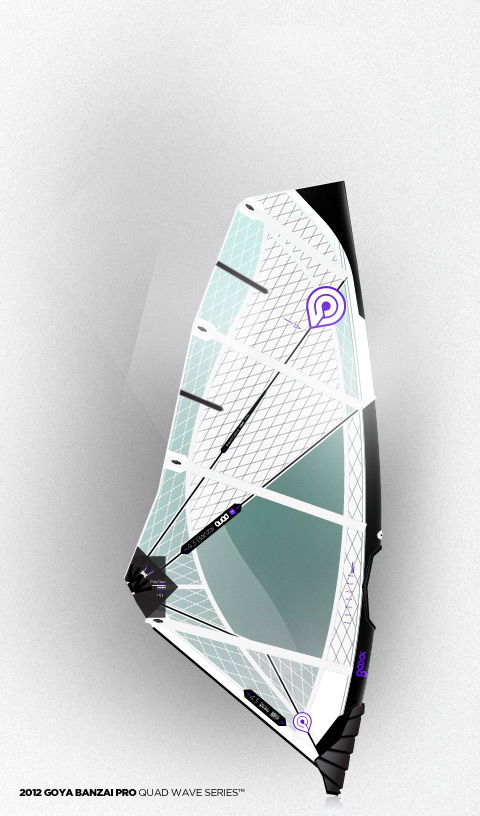

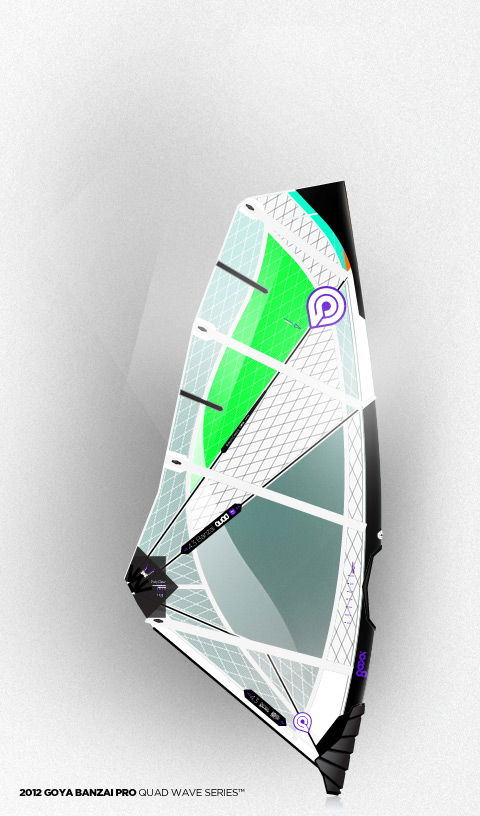

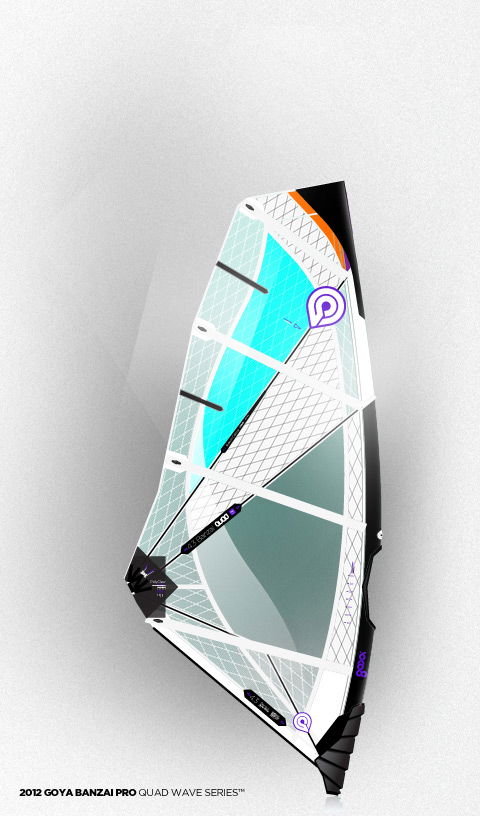

The all new Four Batten BANZAI is a low-end focused, power wave and maneuver sail, with quick and constant power delivery. The reduced batten count and super light scrim materials throughout, make the construction utmost light.

Stability is achieved through the unique Carbon Fiber Stretch Control System that supports the entire sail body, and the large monofilm window offers incredible visibility.

The BANZAI’s low end range is massive because of it’s power profile, lightness and responsiveness. When paired with a modern high volume board, the BANZAI will allow you to use a smaller size sail than before. For example an average size guy on a Custom Quad 84 can use a 4.6 BANZAI when normally riding a 5.0 GURU or ECLIPSE.

The BANZAI concept is all about generating as much lift as possible in a smaller sail size. Because of the tight leech and central draft profile, the BANZAI provides extremely quick planing, plus quick and responsive handling in maneuvers. Super quick rake and sheet angle adjustments are effortless on this sail.

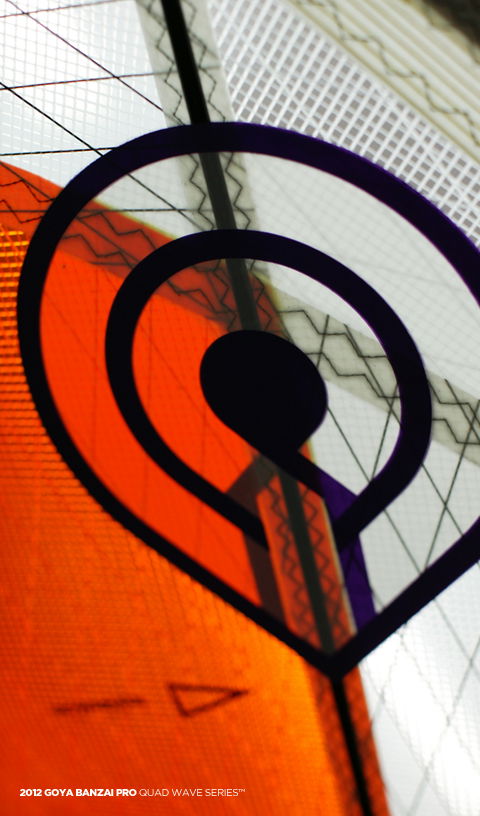

The huge monofilm window provides incredible visibility through the sail allowing you to anticipate your path through the water ahead.

PRO Construction

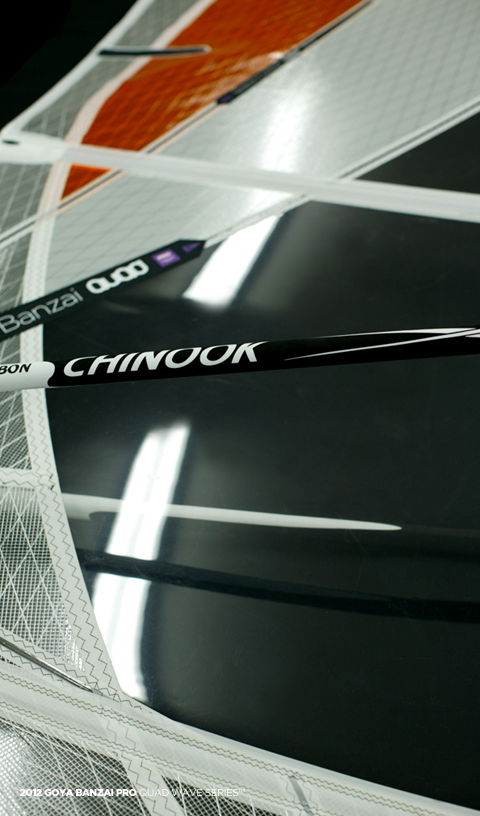

This sail comes in PRO Construction. Our most advanced sail construction combines light weight and excellent durability by blending the latest in scrim film technology and durable X-Ply. These premium sails are equipped with Carbon Stretch Control™ tendons, the Poly Clew™ angled outhaul system and Kevlar® Real Frame™ panels.

Colors
This sail is available in the following color combinations:

BLUE
GREEN
ORANGE
WHITE

Scrim

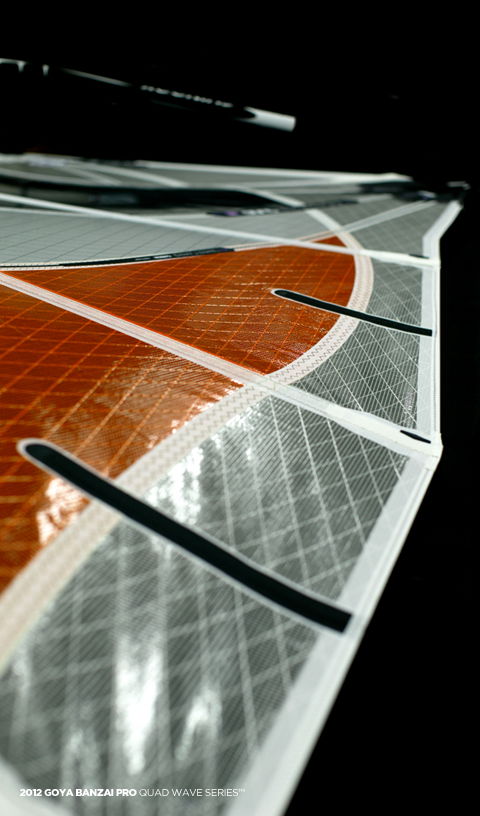

This sail uses the new Goya unique Scrim, a super light alternative to regular materials, in extensive areas of the sails surface. Areas prone to more wear are featured in X-Ply.

Kevlar®
The perimeter of this sail is reinforced with Kevlar yarns, creating a real frame, not just the visual of such a thing.

Reduced Head
This sail features the Goya trademark reduced head leech outline. The Reduced Head works as if you were adding 5mm of tail rocker to your board, making it easier to go around tight corners. Further it reduces head “wag” and makes the sail much quieter in the hands, which increases your comfort and control, meaning more time for you on the water.

Mast
Get the best performance of this sail with a Goya RDM Direct Drive Mast featurning Diagonal Flex™ technology. Learn more

SEE THE PRODUCTS
IN ACTION

Goya video footage from around the world.



Rigging Guide

Please study the following rigging information carefully so you can get THE BEST PERFORMANCE AND MOST FUN out of your new Goya sail. It is recommended that you rig to the basic specs given for each sail as a starting point. OPTIMAL TUNING IS UNIQUE FOR EVERY RIDER, so please take the time to experiment with different settings and try them on the water to find the sail trim settings that are right for you.

For All Goya Sails

SAFE RIGGING

1. Before you start to rig, make sure you have all necessary parts with you and please be sure to rig downwind and well clear from the public.

2. Remove the sail from the bag, release the sail wrapper and slowly roll the sail out on the ground in the direction the wind is blowing.

3. Slide the top of the mast halfway into the mast sleeve. Then connect the bottom part of the mast and slide it in the whole way up, working the sail down the mast a bit at a time.

4. Make sure that the mast tip is firmly seated in the sleeve top or adjustable head cap. Also make sure that mast ferrule joint is completely inserted between mast sections.

5. Slide the mast extension into the mast, fold the tack fairing up to allow you to thread your downhaul rope freely. Slightly tension the downhaul, and then make sure that the mast tip/plug and ferrule joint are still in place before downhauling to the rigging mark on your sail. When you downhaul the sail, always use the strength of both your arms and your legs, and be sure to tighten your stomach muscles as you pull. Also be sure to check your downhaul rope frequently for safety and ease of use.

6. To avoid a “fly-away rig” attach your fully down hauled sail to the universal joint that is already securely fixed to the board. Pull down the tack fairing to cover the mast base extension and universal.

7. Slide the boom down from the top of the mast/sail and attach the front end of the boom to the mast at shoulder height or slightly higher. (Some mast/boom combinations may require a shim).

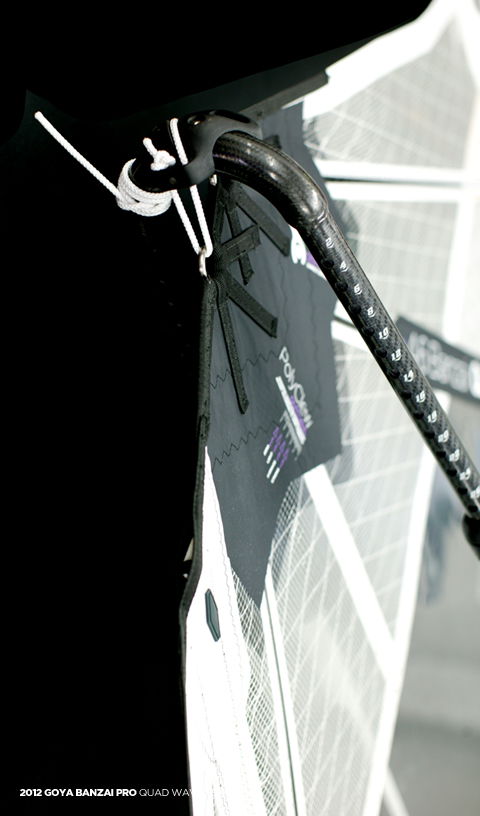

8. Adjust the boom end to the recommended length. Outhaul to it. On models featuring the POLY CLEW system, this is the upper clew ring.

9. Slowly tighten your battens until the wrinkles in your sail disappear. Be careful not to overtighten, otherwise, your battens will not rotate easily, and they might start bending into an S curve, distorting the sail shape.

10. Before you leave shore, look over all of your equipment, making sure everything is tightened and ready to go.

FINE TUNING

The best rigging advice is to add sufficient downhaul tension. It is best to start with a little too much tension and then tune from there. Use the rigging mark on the top of your as a guide for down hauling. Down haul the sail until the leech goes loose in to this mark. The sail will perform best with this downhaul setting in nearly every condition. The correct downhaul tension will provide easy handling in high wind, and also smooth efficient twist in lighter wind. For extreme light wind, it may be beneficial to reduce the downhaul tension a little to induce more shape in to the sail which will provide more power. The outhaul is the main power control for the sail. Start with the recommended boom length, and adjust according to your conditions and style- Less outhaul will create more power in the sail, and more outhaul will create a sail that is flatter, less powerful and more neutral feeling in the hands. Please note- you should never add too much outhaul to the sail, no matter how strong the wind- over out hauling will make your sail very unstable, gutless and difficult to handle. Note that battens do not necessarily rotate around the mast although with some stiffer or bigger-diameter masts, the front of the battens may come closer in.

POLY CLEW OUTHAUL TUNING

The models GURU, ECLIPSE and BANZAI feature the POLY CLEW Outhaul System. With a longer/upper, and shorter/lower clew position, the POLY CLEW gives you the option to tune the sail for optimal performance by matching the sails power delivery and handling characteristic to your individual style. Use the upper clew ring for maximum lift and drive. Use the lower ring to achieve a more compact and flexible feeling rig. Bigger sailors tend to prefer the upper ring. More maneuver-oriented sailors tend to prefer the lower ring. Or you can thread your outhaul through both rings and feel the benefits of both positions.

PROBLEMS & SOLUTIONS

Wrinkles around batten pockets
Battens don’t rotate, or they bend into an “S” shape
Wrinkles around the boom area
Leech is excessively loose and noisy
Too much front or back hand pressure
Still too much front or back hand pressure
Sail is too powerful
Not enough power or forward drive
Sail does not feel stable

Slowly add tension to the battens
Slowly reduce batten tension
Add downhaul tension and/or reduce outhaul tension
Reduce downhaul tension
Set the boom to shoulder height or slightly higher.
Move your harness lines back or forward on your boom
Try more downhaul and outhaul tension
Try releasing your sail tension
Try adding more downhaul tension

SAIL CARE

Avoid rigging on rough surfaces such as asphalt or concrete. When you roll up your sail, make sure that it is free of sand and that you do not crease it. When you are not sailing, put your sail in the shade. Never leave your sail at the beach with sand blowing across it.

MORE TIPS

Re-tune your settings after you use your equipment for the first time, as materials will stretch slightly. Re-check your outhaul whenever your downhaul setting is changed. Always have at least 1 cm of outhaul tension. A stiffer mast will make your sail more powerful, and a softer one will make your sail less powerful and more flexible feeling.

SAFE DE-RIGGING

Release the outhaul tension and unthread the rope from the sail and release the downhaul tension and unthread the rope from the sail. Detach the front end of the boom from the mast and remove the boom. Slide the sail off the mast, a bit at a time, while rolling it up the same way it was rolled originally. Store it in the sail bag. If it is wet with salt water you can store it as is, if it is wet with fresh water, you must first dry it thoroughly.


Rating*




Banzai SKU UPC Model
joe, U.S.A.
Jul 17, 2012

the new goya 104 quad is unreal ! turns unlike anyother 100 ltr board i have ever owned in 30 years of windsurfing!paired with a 4.9 banzai it is heaven!then when it gets windy my goa quad 78 is the tool for the job,4.9 to 3.3 the 78 rocks!thats my goa quiver for 200 lb.real world sailor.

Response: some of us have been involved in windsurfing our entire lives and hearing you sing praises fills us with joy. This is why we do what we do. Thank you, Joe!

Andrea, Italy
Jul 12, 2012

Hi Guys,
Finally I used the 4.6 .. I'm so Stocked about this sail/size/handle/feeling.. I Love it.

Maybe it's the best sail I've ever used!!

Thanks for all

Aloha,
Andrea

Response: That\'s awesome news, Andrea. Always love hearing the stoke!

Pascal, Normandy
Jul 06, 2012

Salut team Goya

I promised you in our last exchange that I would give you my feed back on my Goya equipment.

I decided this year to change all my quiver for Goya sails (4.2+4.7 in guru + 5.3+5.7+6.2 in eclipse) + 2 goya boards quad 84+104L.

First of all, the sails. They are nice for sure but does correspond exactly to what I was expected: eclipse are powerfull and dynamic sails and the guru, good sails for strong winds. They seem to be very strong and when I rigg them, the material does not get "folded" as it was with my previous brand. So the sails after few trials stay in the same condition. When I fall down, the sails does not mark.It gives me confidence to try moves that I wouldn't have consider before....Jason has done a great job

I am looking forward to test the new 4.6 Banzaï as the program will more correspond to my weight (90kgs) compared to the former one.

Secondly the boards: ok the 84 L is what I expected, soft but nervous. My main surprise is the 104 L. Very stable but if you want to push it, it is very manoeuvrable for such a large board, It is still a wave board. The best combination is the 5.7 Eclipse with 104L or 4.7 guru and 84L for me.

I am convinced that Goya will become one of the most successfull brands in the coming years.

Keep in touch !

Pascal / Normandy

Response: Love it, Pascal... keep ripping it up.
